Fiducial Objects

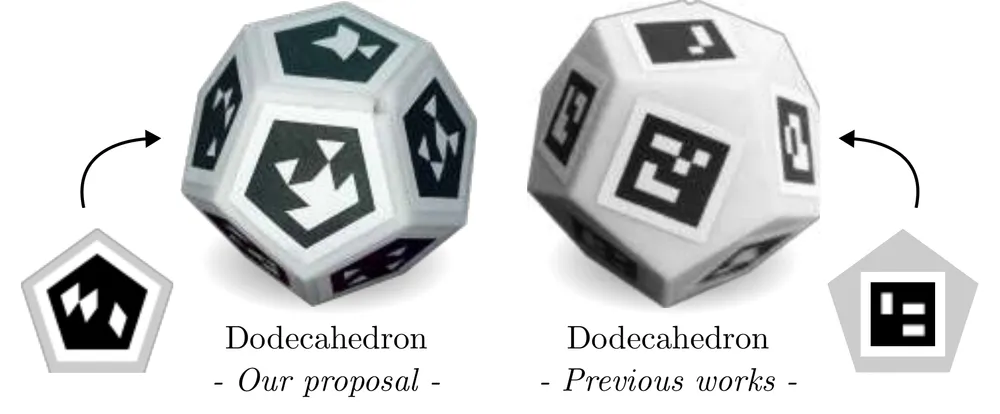

Camera pose estimation is vital in fields like robotics, medical imaging, and augmented reality, and fiducial markers (square patterns such as ArUco and AprilTag) are widely preferred for their efficiency. However, as single flat markers, their accuracy and usable viewing angle are inherently limited. Attaching several markers to a 3D object (a fiducial object) improves visibility from multiple viewpoints, but existing approaches mainly wrap standard square markers around non-square object faces, wasting usable surface area.

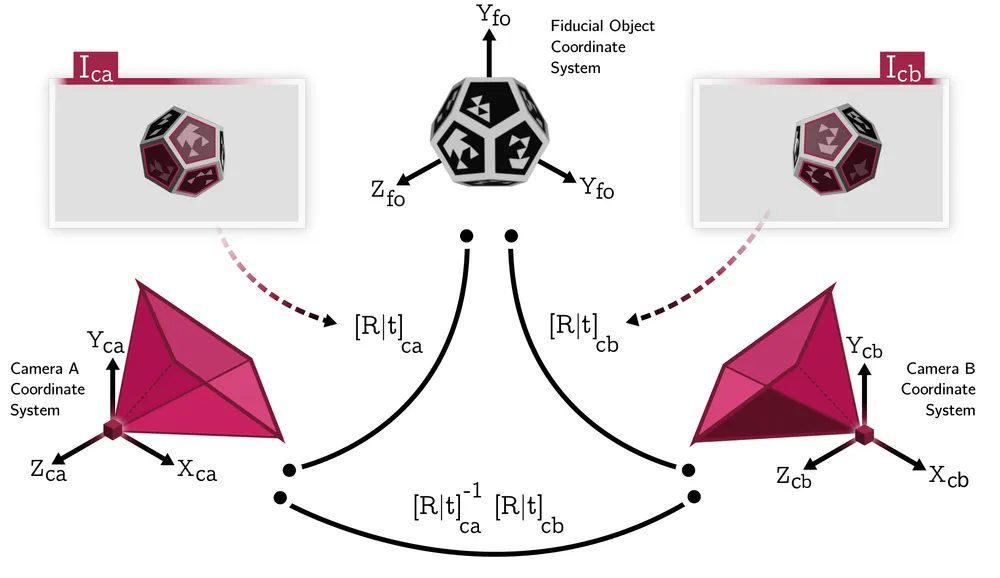

This work introduces a method for creating fiducial objects with custom-shaped markers that optimize coverage of each face of the 3D solid, improving both space utilization and marker detectability at greater distances. Alongside the design method, we present a technique for precisely estimating a fiducial object's configuration from multiviewpoint images, and release the code, tutorials, and application needed to build and calibrate these objects.

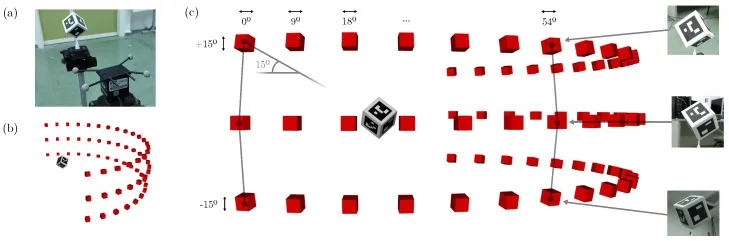

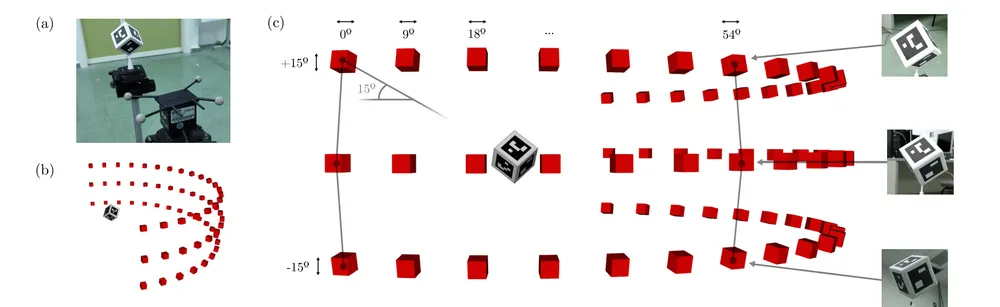

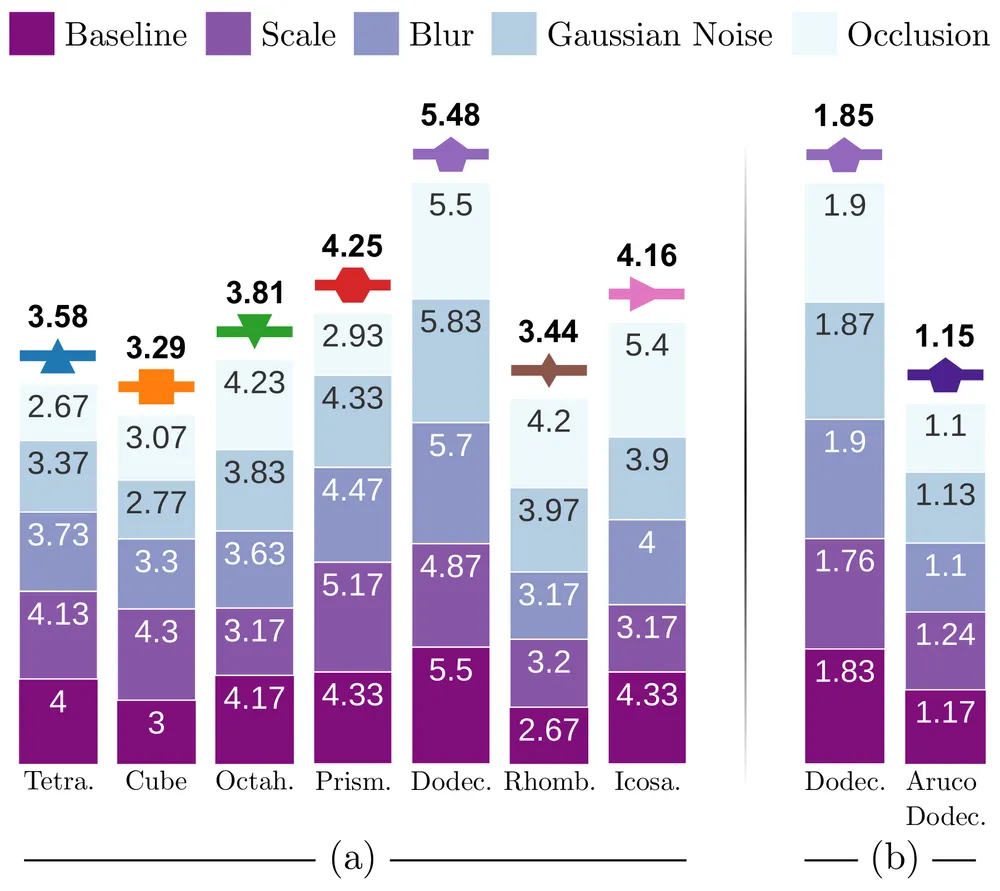

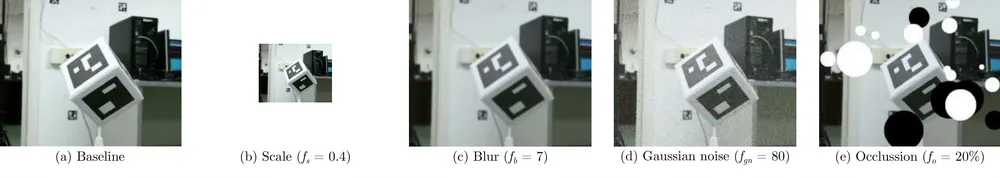

An empirical analysis across noise levels, blur, and scale variations shows that these customized markers significantly outperform traditional square markers for pose estimation, marking a meaningful step forward for fiducial-marker-based positioning.

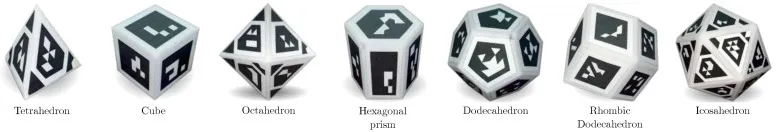

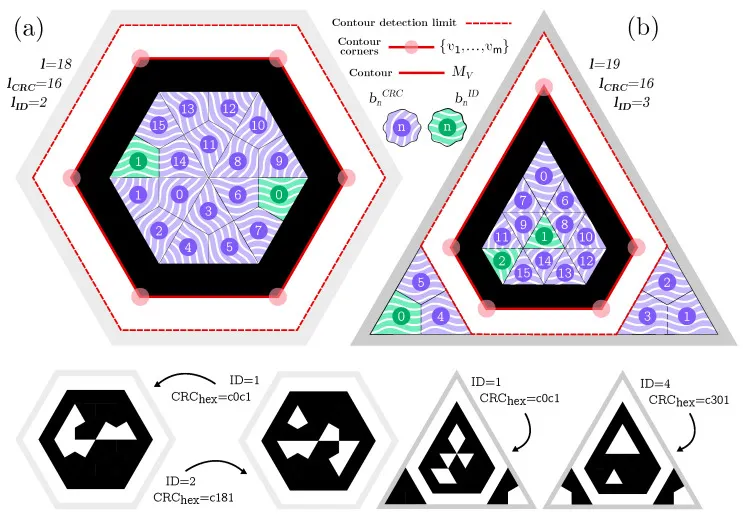

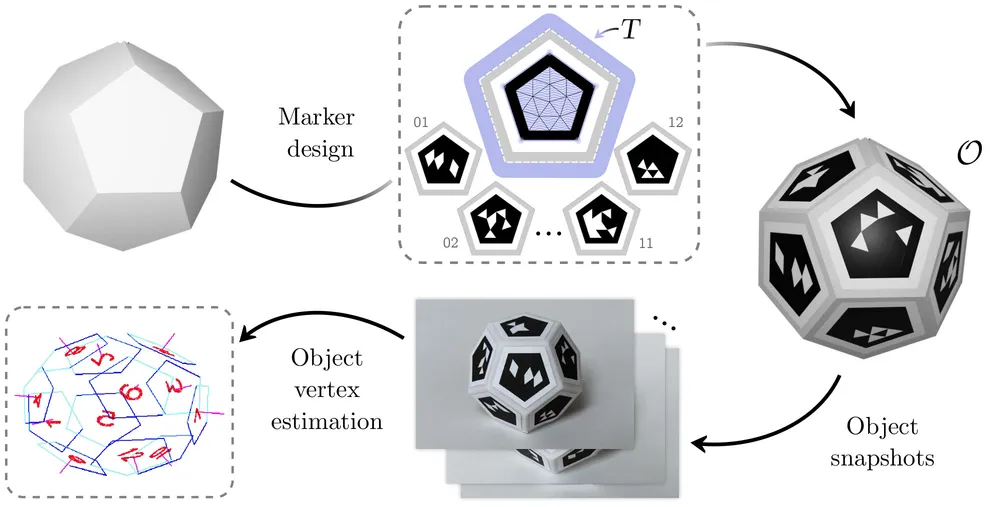

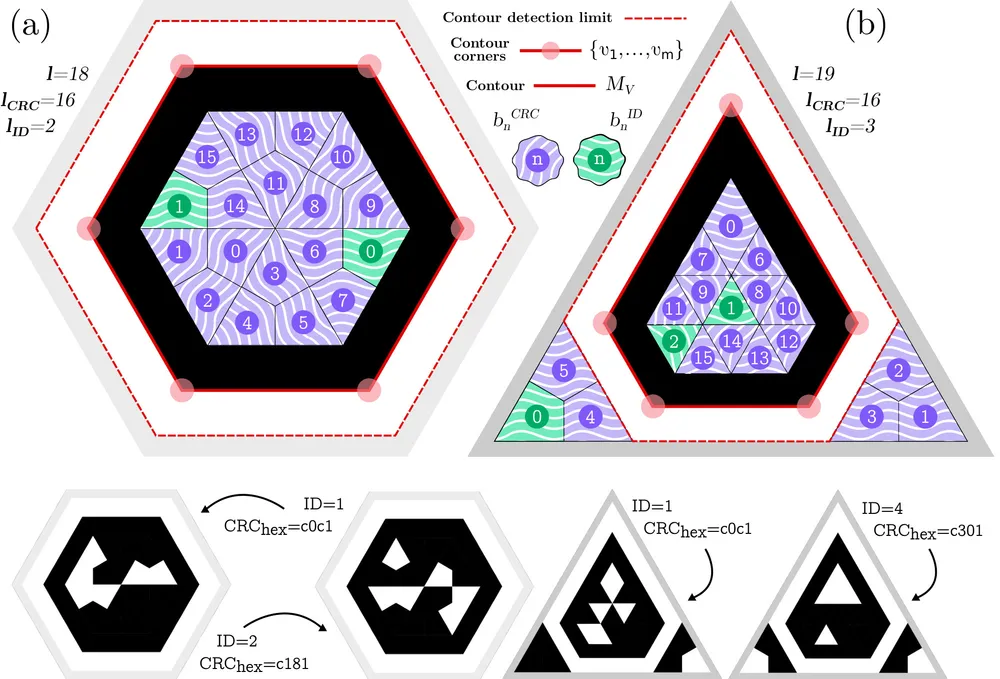

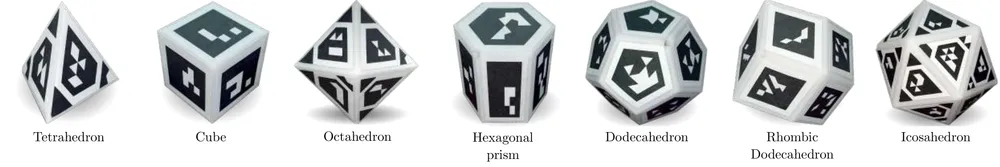

Starting from a target 3D solid (a cube, dodecahedron, or any of several other geometries) each face is treated as a separate canvas: instead of forcing a square ArUco pattern onto it and wasting the unused corners, a custom marker shape is generated that fills the face edge to edge, maximizing the amount of detectable pattern visible from a distance or at a steep angle.

Those custom markers are rendered as textures and applied to the physical, 3D-printed object. Because no two fiducial objects are manufactured with perfect geometric precision, a calibration step follows: a set of multiviewpoint snapshots of the printed object is used to estimate its exact vertex configuration, correcting for small deviations from the ideal digital model. The pose-estimation pipeline then combines detections from every visible face of that calibrated configuration into a single, more accurate and more robust 6DoF pose at run time.
